Overview:

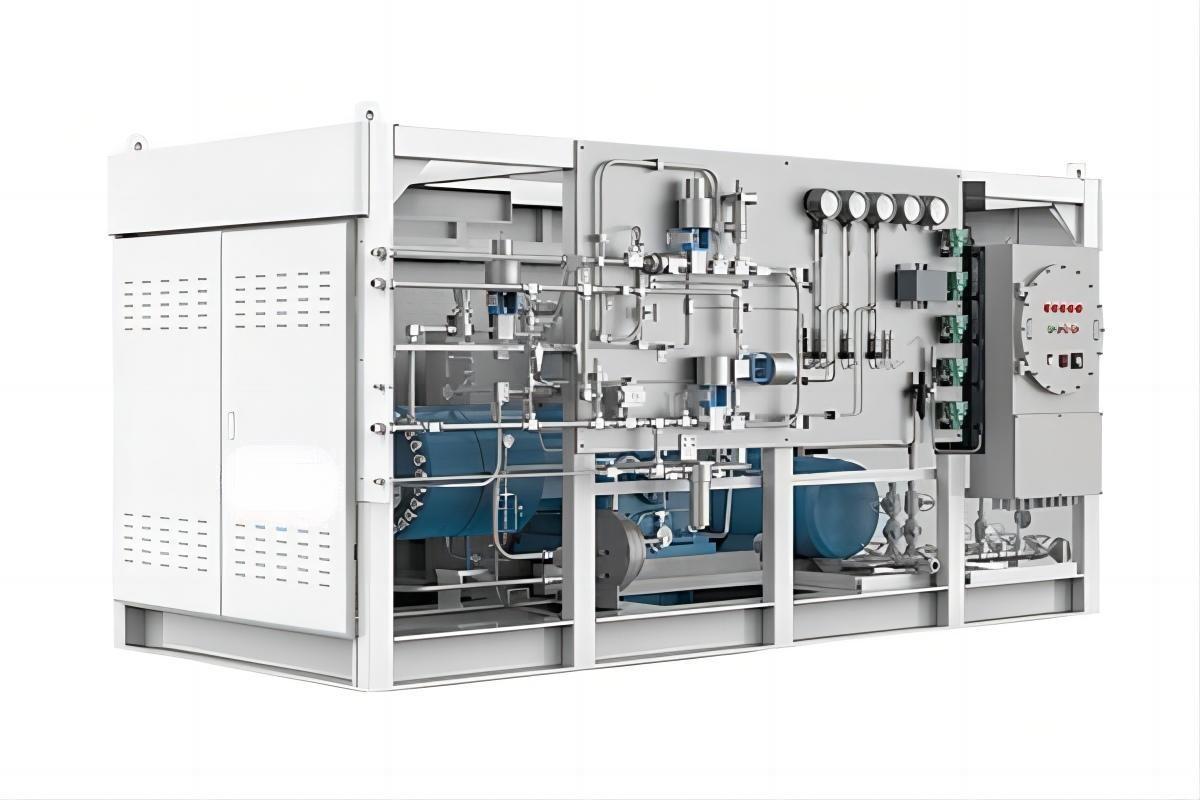

The hydrogen compression unit sled is equipment used to compress hydrogen and deliver it to hydrogen fuel vehicles or other devices. It compresses low-pressure hydrogen by utilizing the pressure of a driving air source. During compression, hydrogen is drawn into the compression unit sled, then its pressure is increased through a series of compression and cooling processes.

Features:

Large discharge capacity

Full-function safety interlocks

Modular design

Explosion-proof and intrinsically safe design to ensure operational safety

Fully intelligent control system design

Overall explosion-proof grade: ⅡCT4

Parameters:

Item

Unit

Range

Medium

/

Hydrogen

Inlet Pressure

MPa

5–20

Rated Discharge Pressure

MPa

45 / 90

Average Discharge Flow

Nm³/h

500

Inlet Temperature

℃

30

Discharge Temperature

℃

≤40

Voltage

V, Hz

380 (+10%, -15%), 50±1
