Overview：

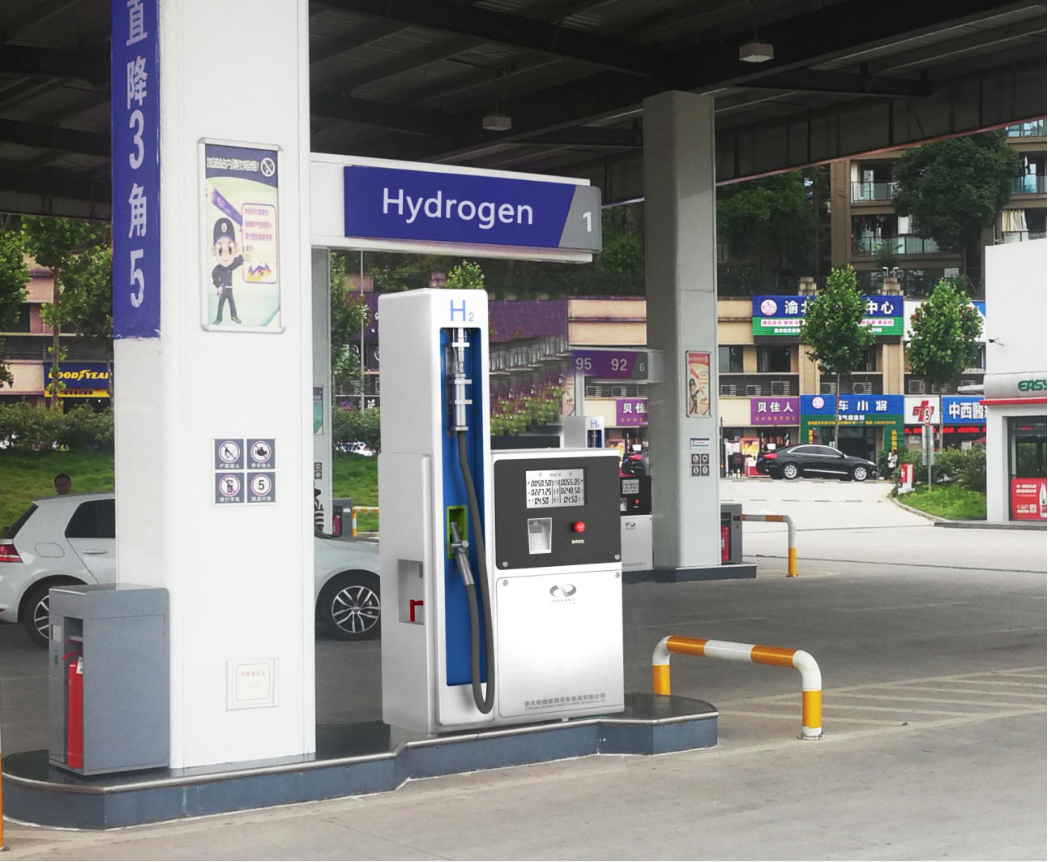

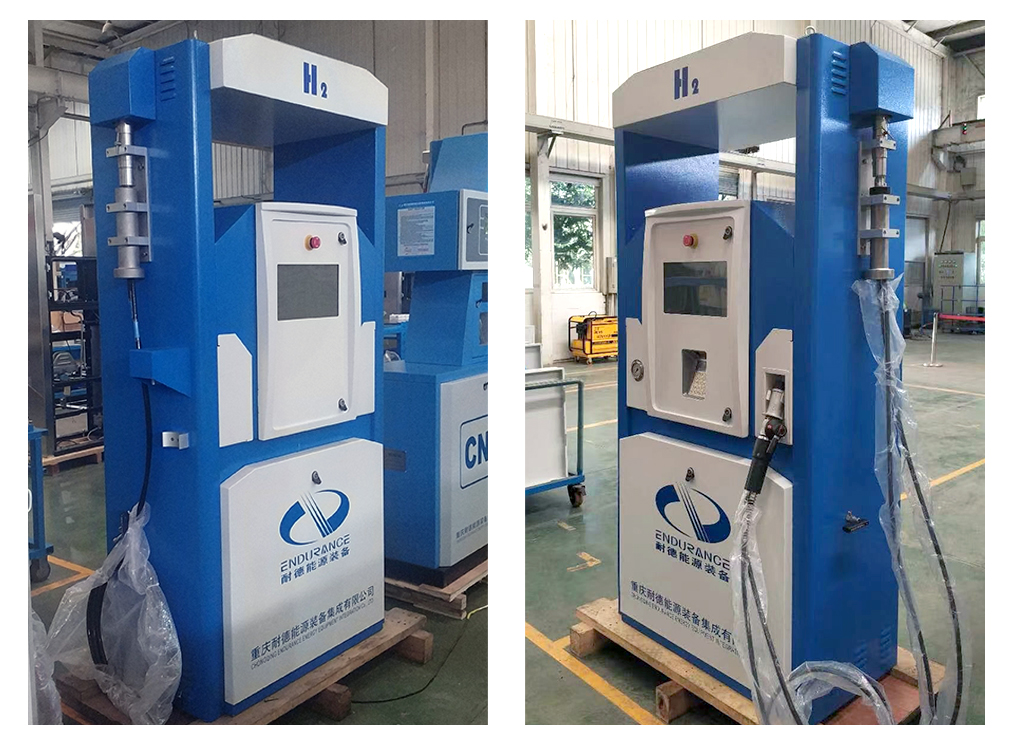

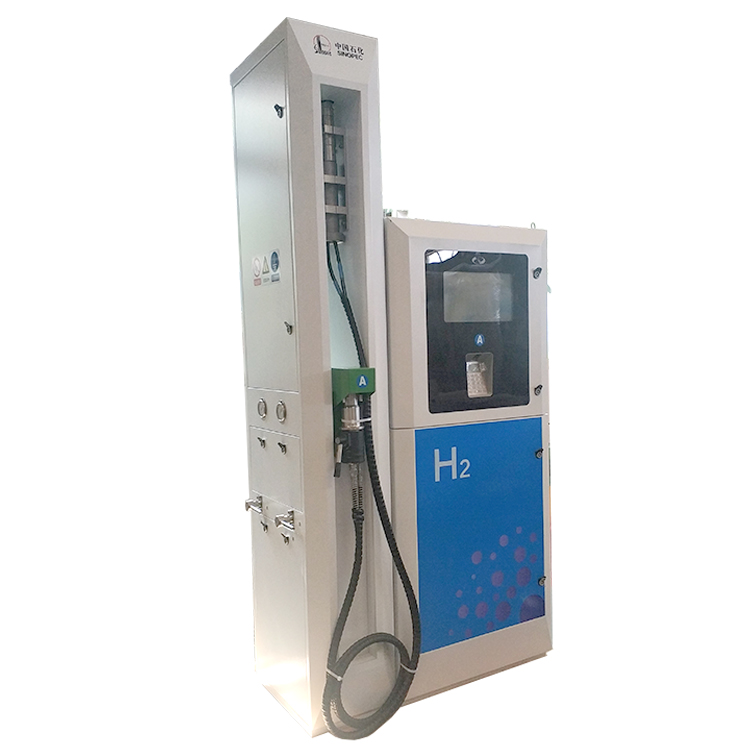

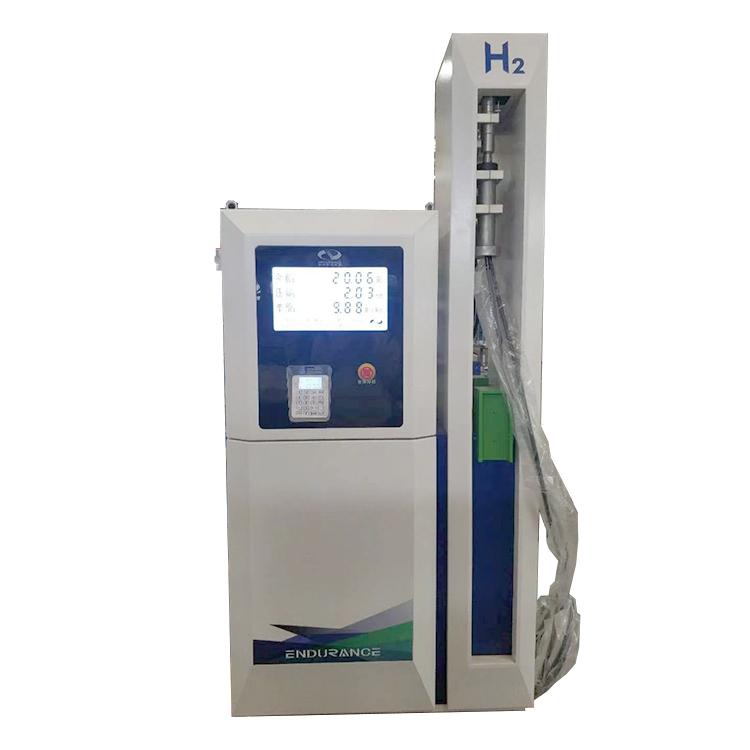

Single Hose Hydrogen Dispenser is a gas filling equipment used for metering of hydrogen in hydrogen stations. The hydrogen dispenser mainly includes high-pressure pipelines, valves, nozzles, metering, pricing display and other systems.
Features:
Ø All pipelines, valves, joints and flow meters are made of materials that do not chemically react with hydrogen
Ø Select high-precision automatic control mass flowmeter as the core component of measurement
Ø Each air inlet is equipped with a filter (filtering accuracy ≤5μm), which can effectively protect the equipment from damage by particulate impurities
Ø Use an automatic flow control system to avoid potential safety hazards caused by human factors.
Specification：
Item | Parameters | Note |
Dimension | 1250×750×2380（mm） | According to the final design |
Wight | ≤350kg |
|
Inlet pressure | ≤45Mpa |
|
Power | 0.2kW |
|
Voltage（AC） | 220V，50Hz |
|
Rated working pressure |
35Mpa |
|
Max. working pressure |
43.8MPa |
|
Design pressure | 48.2MPa |
|
Flow rate | ≤3.6kg/min |
|
Hose length | 4m |
|
Filling ports | 1 port |
|
Filling nozzle |
WEH TK16 | OptionalTK25 with extra price |
Accuracy | ±1.5%kg/min |
|
Repeatability | ≤0.5% |
|
Min. flow | 0.16kg |
|
Display function | Filling volume, amount, unit price, instantaneous flow rate, etc. |
