Overview:

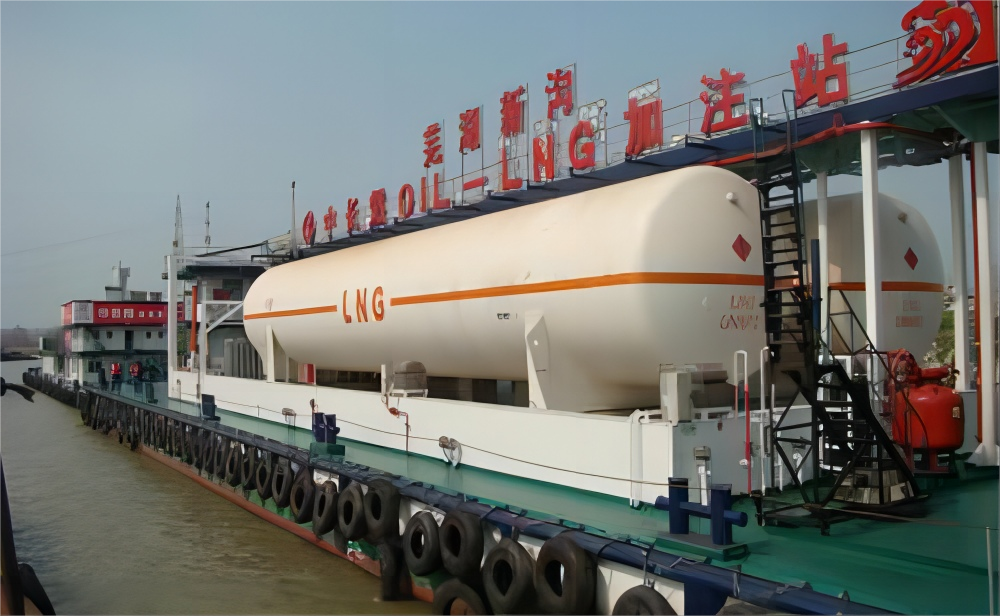

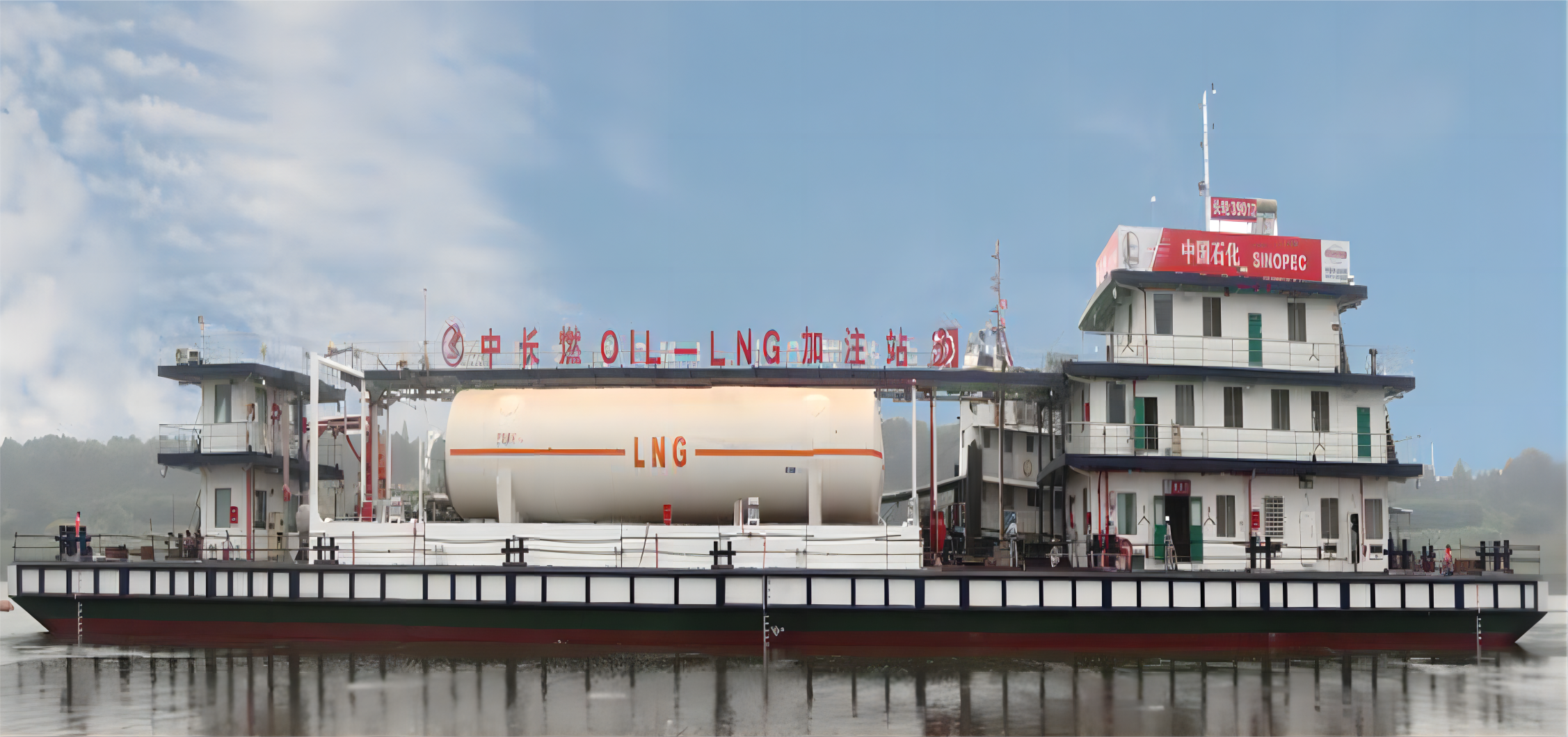

LNG can also be used as fuel for barges, replacing diesel, which will reduce carbon emissions, decrease air pollution, and help customers save on fuel costs. LNG fueling stations can be built on vessels floating on rivers to provide bunkering services for barges, or constructed onshore near the riverbank.

Features:
● Fully skid-mounted integration
● Multi-level measurement technology for storage tanks to ensure accurate liquid level detection
● Loading arms for refueling connections, fast and efficient
● One-button operation for precooling and refueling, convenient and efficient

Specifications:

Technical Parameters

Working Medium

Liquefied Natural Gas

Storage Capacity

60–200 m³

Max Flow Rate

Dual pump: 680 L/min; Triple pump: 1020 L/min

Max Working Pressure

1.6 MPa

Design Pressure

1.92 MPa

Power Supply

AC380V

Medium Temperature

–162°C to 55°C

Ambient Temperature

–35°C to 55°C
