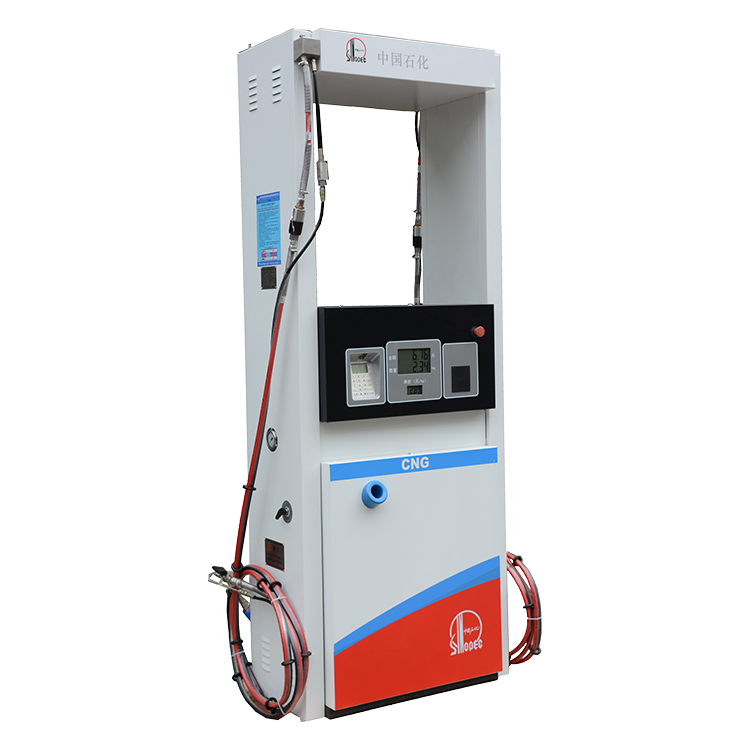

The dispenser can be configured with single hose with compact size to reduce investment, which is especially suitable for private, micro or mobile CNG stations with less gas filling demand.

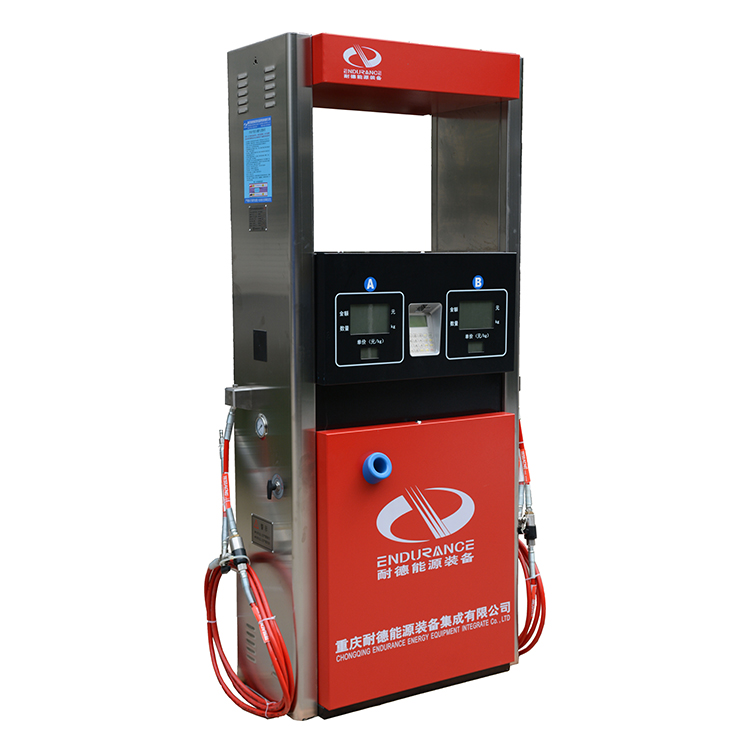

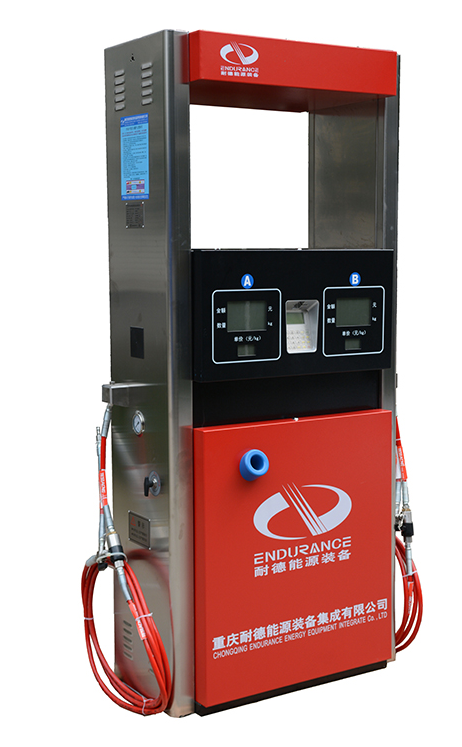

Whilst in typical NGV stations, the dispensers with dual hoses are the most popular type for simultaneous filling at both sides without interrupting each other.
We also offer CNG dispenser with four hoses which is suitable for stations with limited space and it could fuel 4 vehicles at the same time.
Features:
Ø Push-to-Start design, making it quite easy to operate.
Ø Inbuilt high-efficiency core processor dedicated for industrial application to ensure reliable performance.
Ø Coriolis mass flow meter ensures high accuracy of +/-0.5% with temperature-compensation function.
Ø Automatic filling to target pressure, preset amount filling, preset volume filling or manual filling functions available.
Ø Online monitoring of pressure, temperature and flow rate during filling process.
Ø Precise coalescent filters for removal of possible particles and liquids to protect valve cartridges, seals and gas engines on the vehicles to ensure longer service life.
Ø All electrical and control system has adopted Fail-safe design which provided enhanced safety in operation.
Ø Multiple safety measures with over pressure protection, pressure compensation, breakaway coupling, emergency shut-off.
Ø ESD button for cutoff of power and gas supply in emergency case.
Ø Data protection and display during power cut off.
Ø Automatic error diagnosis for data distortion and fault.
Ø Large memory chips available for storage and query of thousands of filling records.
Ø Online drainage of filters making it convenient for maintenance.
Ø Robust rigid enclosure structure assured the long durability of dispenser.
Ø Optional with single bank, dual banks or three banks sequential filling types.
Ø Optional with either pneumatic valve control or electro-solenoid valve control.
Ø Optional back-office IC card system and Back office Management System.
Ø Suitable for severe working conditions in tropical area as well as frigid area.
Professional Services:
Our CNG dispenser program supports internet connection through laptop or back-office management system for remote diagnosis and upgrading to latest version very conveniently upon request and access permission from client, regardless of time and location anywhere in the world without concern of international travel restraint under COVID-19 pandemic situation.
Specification：
Technical Parameters | |
Flow range | Up to 30 kg/min |
Flexible Hose quantity | Single hose, Dual hoses or Four hoses |
Sequential Control Type | Single bank, dual banks or three banks |
Batch Accuracy | +1.0% |
Design Pressure | 275 bars / 27.5MPa / 4000 psi |
Nominal working pressure | 200 bars / 20 MPa / 3000 psi |
Maximum working pressure | 250 bars / 25 MPa / 3600 psi |
Set pressure of Safety valve | 265 bars / 26.5 MPa / 3850 psi |
Nominal Static Pressure | 375 bars / 37.5 MPa / 5500 psi |
Tensile Strength | 400N~600N @ 200 bar |
Ambient Temperature | -25℃~+55℃ standard type * Severe condition upon request |
Explosion-proof Grade | Ex II 2G IIA T3 |
Power Supply | 220V/230V/240V, 50Hz/60Hz |
Working Power | 100W, 200W or 400W |
Measuring Unit | Kg, Nm3 or other units upon request |
Minimal Reading | 0.01 |
Single counting range | 0～9999.99 or 0~999999.99 |
Accumulative counting range | 0～99999999.99 |
Unit Price setting range | 0～99.99 or 0~9999.99 optional |
Filling Method | Fixed amount/volume Non-fixed amount/volume |
Preset filling range | 1～9999.99 or 1~999999.99 |
Nozzle | NGV1, NGV2 or NZS nozzle |
Hose Size | 3/8”ID filling line, 1/4”ID vent line |
Length of Hose Assembly | 3~6 meters optional |
LCD display | Single display or Dual display optional Unit price (0~99.99) or (0~9999.99) Volume (0~9999.99) or (0~999999.99) Amount (0~9999.99) or (0~999999.99) |
Optional | In-built receipt printer In-built IC card reader IC card management system |
Qualification：
- ATEX Directive 2014/34/EU
- Low Voltage Directive 2014/35/EU
- Electromagnetic Compatibility Directive 2014/20/EU
- EAC TP TC 012 Certificate
- Technical Associate of IFSF (International Forecourt Standards Forum)
- Certificate of Conformity, China
- Legal Metrology License, China
- CCoE PESO Approval, India
- Legal Metrology Approval (Weight & Measurement), India
- SONCAP Certificate, Nigeria
